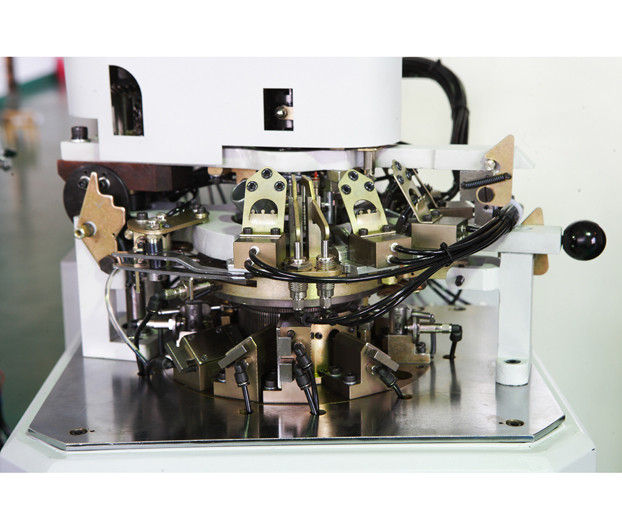

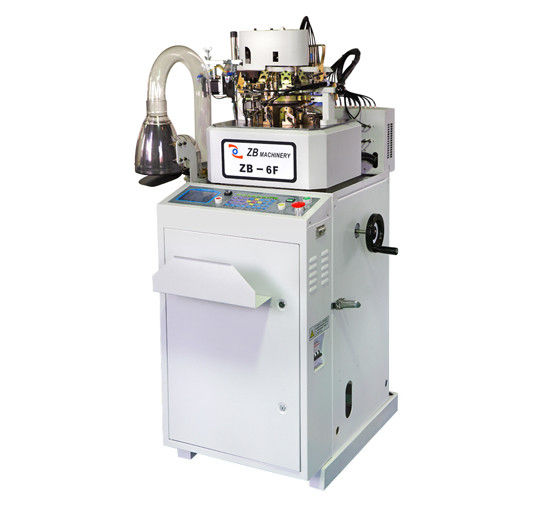

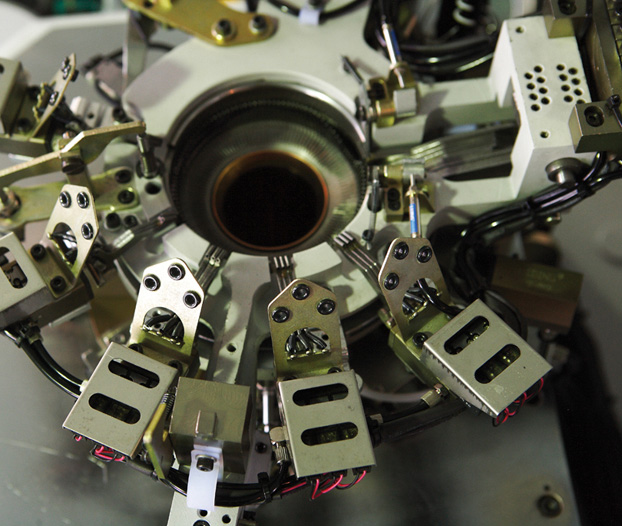

Computerized sock machine 6F

Features and functions:
1、All materials of needles system is adopted the technology of Germany, and have a good stability, wearable.
2、Fully computer control.
3、Electro-pneumatic yarn finger and cam control.
4、Stepping motor for elastic yarn and stitch cam control.
5、The double picks, the double lift needle to beat a heel, can knit Y heel. Knit “3D” socks double elastic
6、Automatic stop by a sensor when every error occurs.
7、Option of up to 2 main feeds + 5 pattern feeds (16 color ).
8、Equipped the UPS machine can keep the memory of program and the knitting action if transient electrical cut happened, when the power restored, 9、machine can continue the knitting.
9、Knitting can be operated thought keyboard and LCD.
10、The fog form of needle tube is even to provide oil, reducing fabric greasy dirt.

Standard technical specifications:

Productivity:	250~300pairs/ 24 hours
Cylinder Diameter:	3 3/4’ 3 1/2’
Needle Range:	84~200 N
Running Speed:	240~300RPM
Drive Motor:	0.85KW
Fan Motor:	0.75KW
Control Box:	0.80 KW
Floor Space (LWH):	150120240CM
Net Weight:	300KG
Gross Weight:	350KG
Packing Dimension:	115105170CM
